ID
OF-169817
Condition
New
Brand
- Other
Description

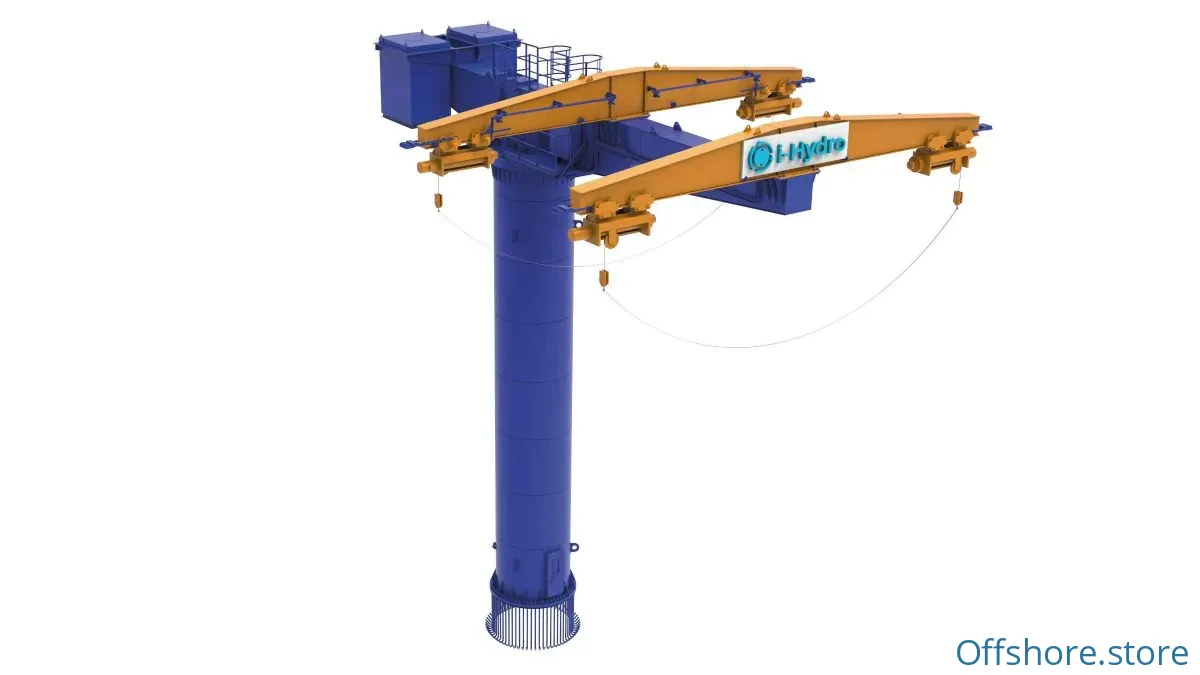

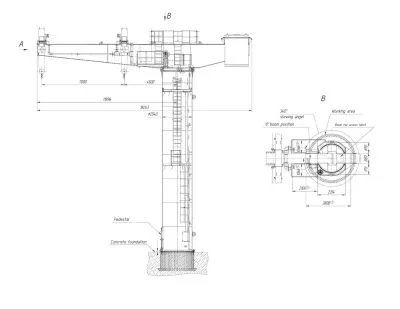

A marine pedestal slewing crane with an 80-ton lifting capacity — designed for hoisting vessels and heavy loads directly from the water surface.
The crane features a reliable electro-hydraulic drive, four lifting hoists, and radio remote control, ensuring safe and precise operations at quaysides and shipyards.
Main Characteristics
• Safe Working Load: 80 t
• Lifting height: up to 16.6 m
• Slewing angle: 340°
• Lifting speed: 1.6 m/min
• Power supply: 400 V / 50 Hz
• Total installed power: 65.4 kW
• Operating temperature: –10 °C … +35 °C
Advantages
• Four synchronized hoists for lifting large or irregular loads
• Heavy-duty welded steel structure (325-09Г2С)
• Full electric control system with radio and cable remotes
• Certified according to the EAEU TR CU 010/2011 Machinery Safety Regulations
In addition to the 80-ton pedestal slewing crane, the system includes a self-propelled transport trolley designed for safe movement and positioning of vessels and heavy modules within the dock area.
Transport Trolley Features:
• Load capacity: up to 80 t
• Hydraulic suspension for precise load leveling
• Independent wheel drives and steering control
• Remote operation and synchronized movement with the crane
• Modular frame for adaptation to various hull sizes
This combination of crane + transport platform provides a full cycle of lifting, transfer, and docking operations for shipbuilding and repair facilities.
The crane features a reliable electro-hydraulic drive, four lifting hoists, and radio remote control, ensuring safe and precise operations at quaysides and shipyards.
Main Characteristics
• Safe Working Load: 80 t
• Lifting height: up to 16.6 m
• Slewing angle: 340°
• Lifting speed: 1.6 m/min
• Power supply: 400 V / 50 Hz
• Total installed power: 65.4 kW
• Operating temperature: –10 °C … +35 °C
Advantages
• Four synchronized hoists for lifting large or irregular loads
• Heavy-duty welded steel structure (325-09Г2С)
• Full electric control system with radio and cable remotes
• Certified according to the EAEU TR CU 010/2011 Machinery Safety Regulations
In addition to the 80-ton pedestal slewing crane, the system includes a self-propelled transport trolley designed for safe movement and positioning of vessels and heavy modules within the dock area.
Transport Trolley Features:
• Load capacity: up to 80 t
• Hydraulic suspension for precise load leveling
• Independent wheel drives and steering control
• Remote operation and synchronized movement with the crane
• Modular frame for adaptation to various hull sizes
This combination of crane + transport platform provides a full cycle of lifting, transfer, and docking operations for shipbuilding and repair facilities.
Country
Hong Kong
State/Region/Province
Kwai Tsing
Address
Kwai Tsing District, HKG
