ID
OF-130138
Condition
New
Brand
- Other
Description

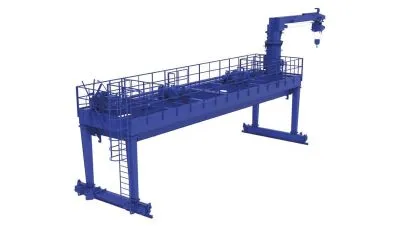

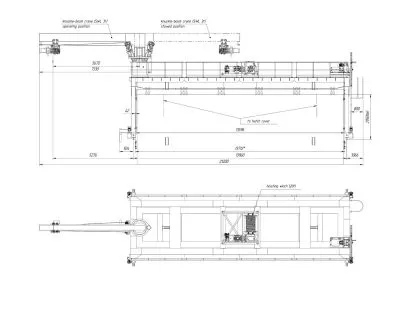

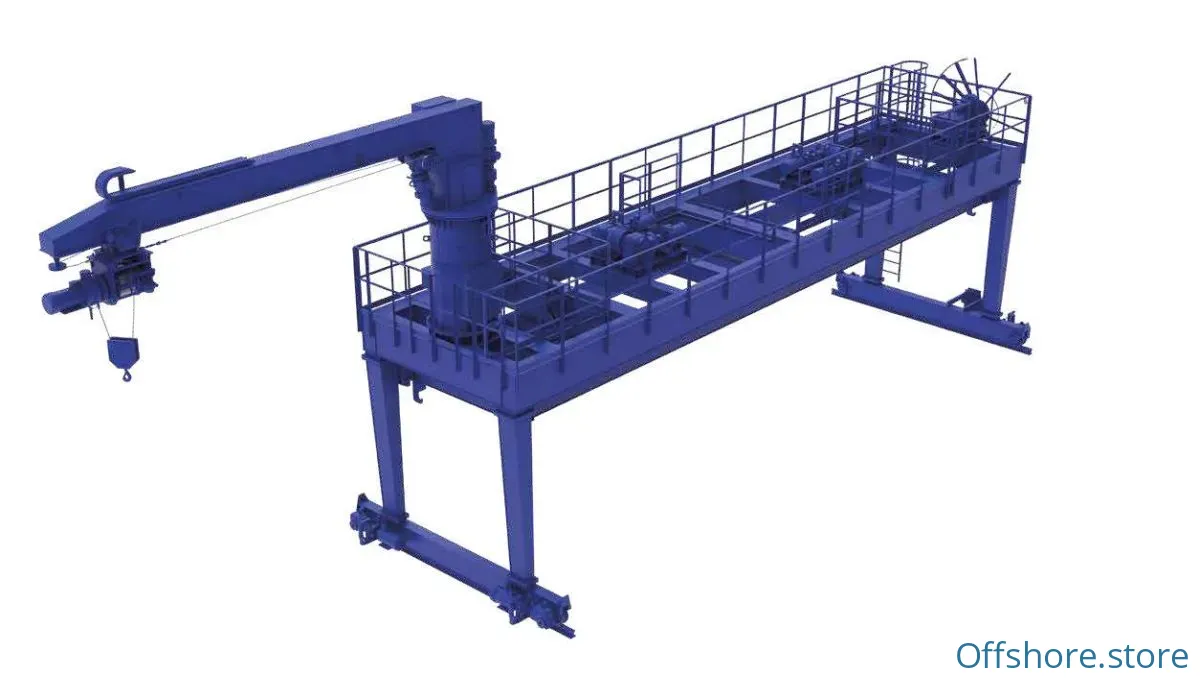

An integrated solution for hatch cover handling and cargo operations: a 20-ton gantry hatch cover crane equipped with an auxiliary 3-ton knuckle boom crane.
Gantry Crane Key Specifications::
• Safe Working Load (SWL): 20 t
• Hoisting speed: 10 m/min
• Gantry speed: 23 m/min
• Travel distance: 91,7 m
• Hoisting winch with double rope drum
• Rail clamps, buffer systems, and explosion-proof design
• Heavy-duty steel structure 09G2S
Knuckle Boom Crane Key Specifications:
• Safe Working Load (SWL): 3 t
• Boom outreach: 4 m
• Hook lifting height: 5,9 m
• Lowering depth: up to 16,5 m
• Hoisting speed: 10 m/min
• Trolley speed: 10 m/min
• 360° continuous slewing, explosion-proof design (ATEX category EX II T4)
• ATEX-certified slip ring unit, radio remote control
Advantages:
• Reliable handling of hatch covers under vessel motions, including rolling, heeling, and wind loads
• Capability to perform auxiliary operations using the knuckle boom crane
• Compliant with Navy requirements
Gantry Crane Key Specifications::
• Safe Working Load (SWL): 20 t
• Hoisting speed: 10 m/min
• Gantry speed: 23 m/min
• Travel distance: 91,7 m
• Hoisting winch with double rope drum
• Rail clamps, buffer systems, and explosion-proof design
• Heavy-duty steel structure 09G2S
Knuckle Boom Crane Key Specifications:
• Safe Working Load (SWL): 3 t
• Boom outreach: 4 m
• Hook lifting height: 5,9 m
• Lowering depth: up to 16,5 m
• Hoisting speed: 10 m/min
• Trolley speed: 10 m/min
• 360° continuous slewing, explosion-proof design (ATEX category EX II T4)
• ATEX-certified slip ring unit, radio remote control
Advantages:
• Reliable handling of hatch covers under vessel motions, including rolling, heeling, and wind loads
• Capability to perform auxiliary operations using the knuckle boom crane
• Compliant with Navy requirements
Country
Hong Kong
State/Region/Province
Kwai Tsing
Address
Kwai Tsing District, HKG
