ID
OF-214574
Condition
New
Brand
- Other
Description

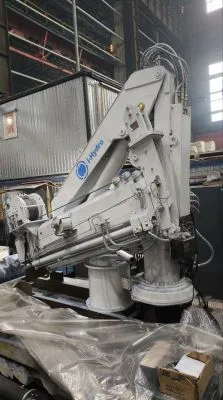

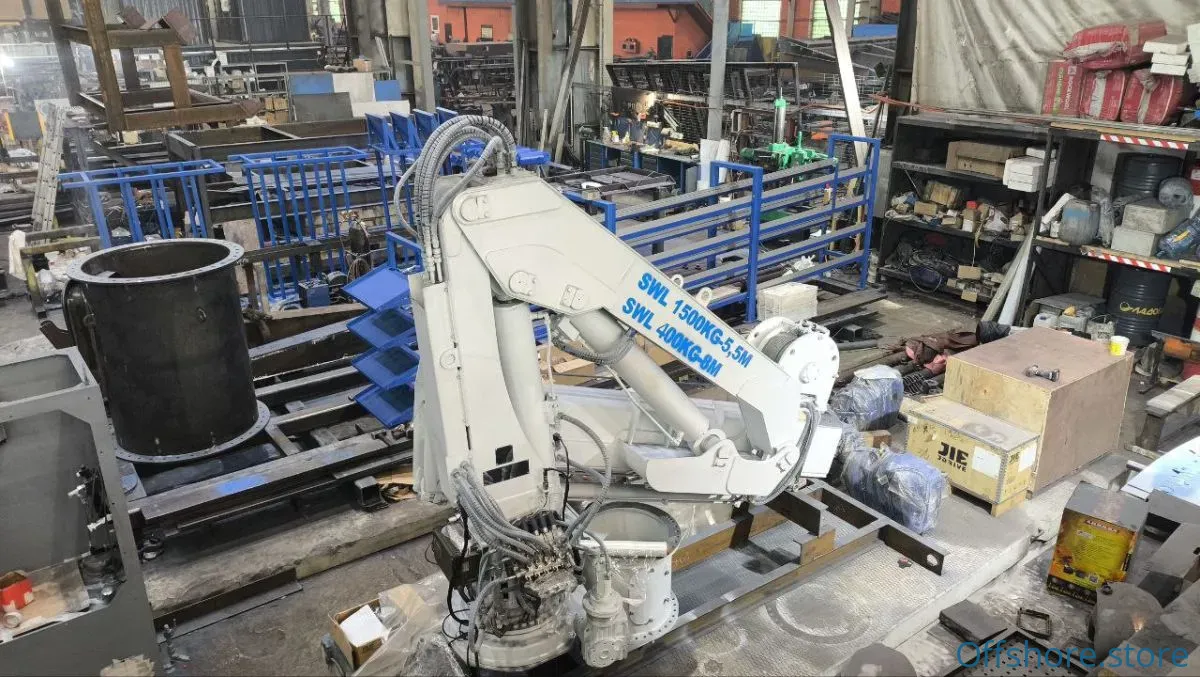

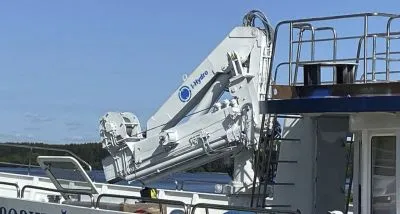

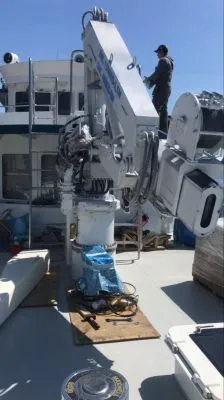

KMU-8/0.4 — a compact and powerful electro-hydraulic marine knuckle-boom crane designed for yachts, boats, fishing vessels, patrol craft and workboats.
Its lightweight structure, smooth operation and clean “aerodynamic” design make it a perfect fit for modern yacht architecture.
Key Specifications:

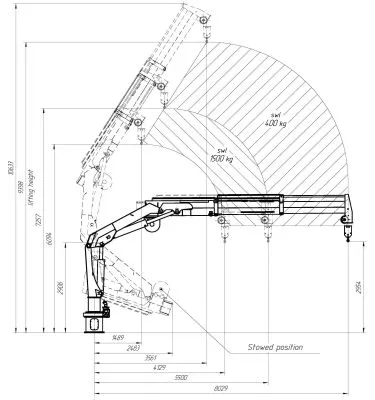

• SWL 1500 kg at 1.5–5.5 m outreach
• SWL 400 kg at 2.25–8.0 m outreach
• Hook outreach: 1.5–8.0 m
• Max lifting height: 9.39 m
• Max lowering depth: 35 m (ideal for low piers and water-level operations)
• Hoisting speed: ≥ 18 m/min
• Slewing speed (unloaded): ≥ 1 rpm
• Slewing angle: ≥ 360° (with safety limit sensors)
• Hydraulic pressure: ≤ 25 MPa
• Power consumption: ≤ 15.5 kW (380V, 50Hz, 3-phase)
• Hydraulic oil: HLP 32
• Operating temperature: –10…+45 °C
• Stowed (“transport”) limits: –20…+45 °C, wind up to 2000 Pa
• Climate category: OM1
Construction & Hydraulics:
• Three telescopic boom sections driven by two hydraulic cylinders
• Knuckle (lifting) section + slewing column

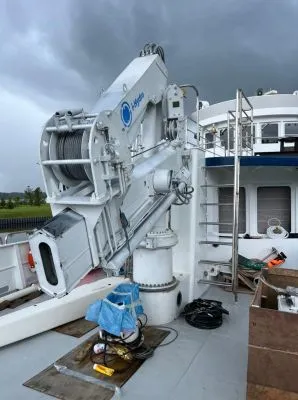

• Marine winch with motor-reducer, brake and rope-limit sensor
• 1.5-ton hook block with swivel
• Separate hydraulic power unit
• Control cabinet + portable remote control
• Heavy-duty marine steel 09G2S & 40Kh
Operating Sequence:
Power ON → HPU start → Crane unfolding → Hook release → Lifting operations → Rope winding → Hook stowage → Crane folding
3D Animation:
https://www.youtube.com/watch?v=CMp3I8NE_18
