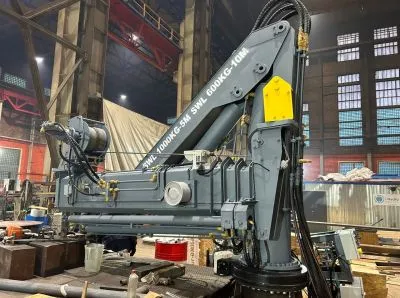

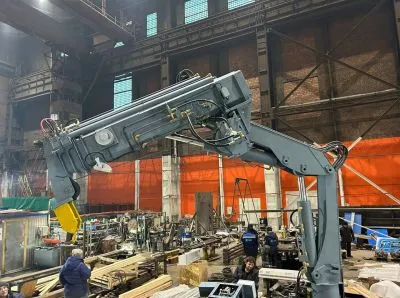

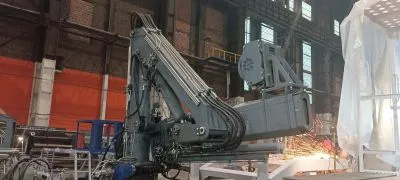

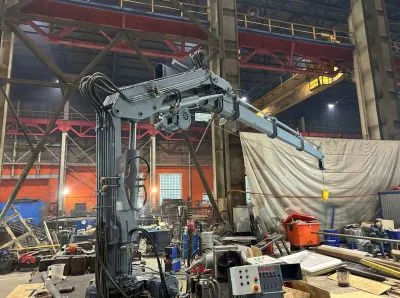

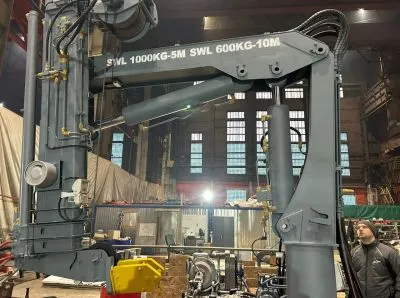

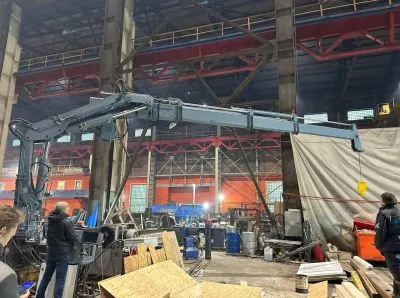

Marine Knuckle Boom Crane 10m/1000kg

The marine electro-hydraulic knuckle boom crane — a universal and compact lifting solution designed for yachts, workboats, fishing vessels and multi-purpose craft.
This is a “workhorse” crane capable of reliable operation in harsh marine environments, including storms up to 4 points.

Key Technical Specifications
• SWL on calm water:
– 1000 kg (1.5–5.0 m outreach)
– 600 kg (2.0–10.0 m outreach)

• SWL in sea state up to 4 points:
– 625 kg (1.5–5.0 m)
– 280 kg (2.0–10.0 m)

• Hook outreach: 1.5…10.3 m
• Maximum lifting height: 11 m
• Maximum lowering depth: 35 m
• Hoisting/lowering speed: 18 m/min
• Slewing speed (no load): 1 rpm
• Slewing angle: 360° (with limit sensors protecting hoses/cables)
• Crane weight: 2300 kg
• Working pressure: up to 28 MPa
• Power consumption: up to 22 kW
• Electrical supply: 3×380 V / 50 Hz
• Operating temperature: –25…+50 °C
• Storage/transport: –45…+50 °C
• Wind load: up to 400 Pa (working), up to 2000 Pa (stowed)

Crane Components
• Steel base welded to deck foundation
• Slewing system: worm-gear slewing bearing + hydraulic motor + rotation limiter sensors
• Column and boom section (knuckle)
• Four-section telescopic boom with 3 hydraulic cylinders
• Winch with reducer, brake, pressure roller and unwinding-limit sensor
• Hook block with swivel and safety latch
• Control cabinet (electric + manual backup control)
• Remote control pendant

Applications
• Fishing vessels (all types)
• Yachts and expedition boats
• Tugs and support vessels
• Patrol boats
• Utility and coastal fleet
• Workboats and service craft
