ID
OF-446579
Condition
New
Brand
- Other
Description

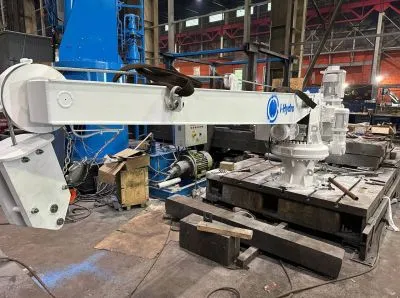

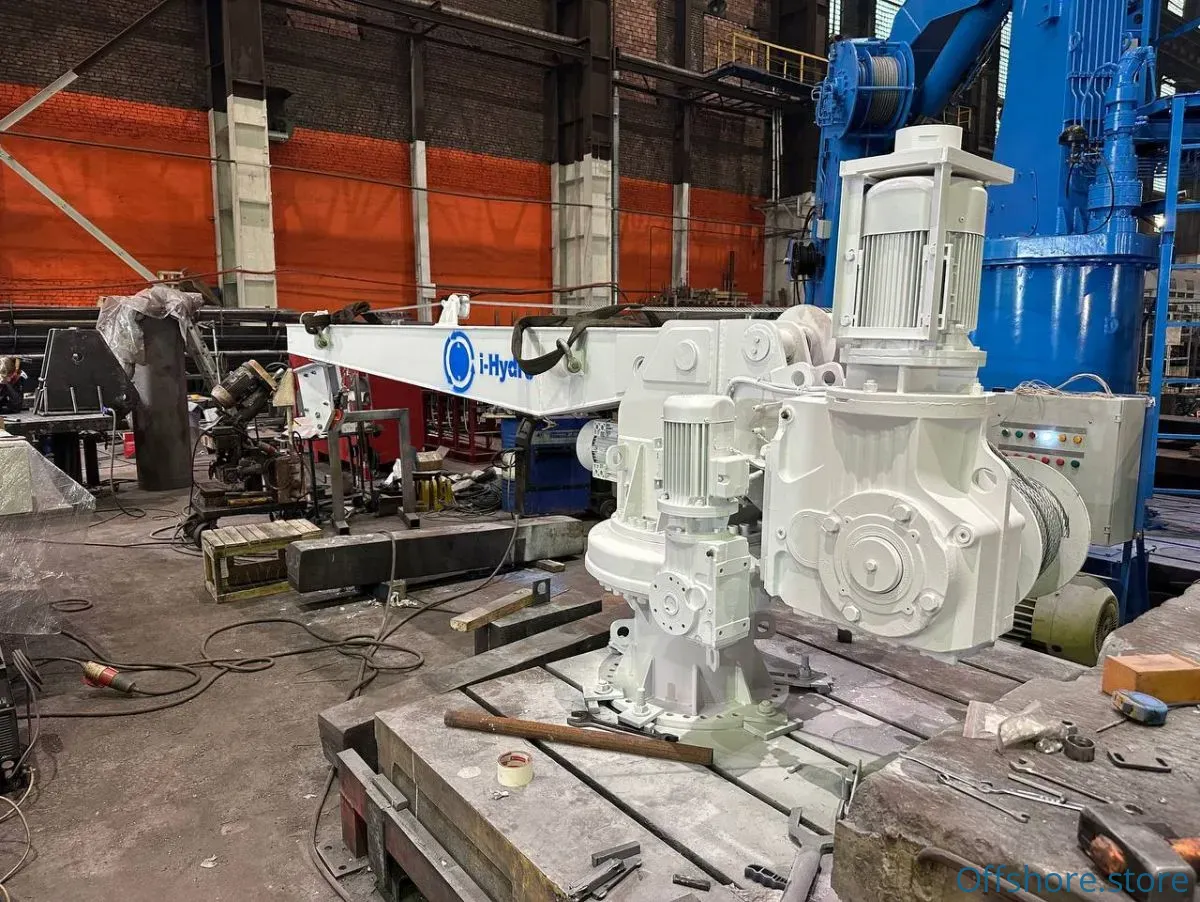

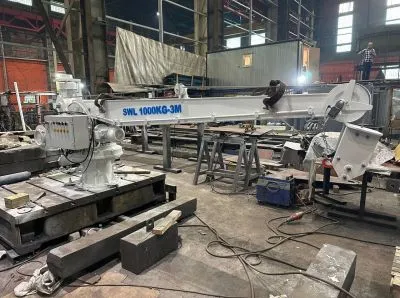

A marine folding-jib deck crane with a lifting capacity of 1000 kg, designed for cargo handling operations on the decks of marine vessels.
The crane is compact, reliable, and engineered to operate under marine vibration, splash exposure, wind loads and vessel motion.
Main Features
• Safe Working Load (SWL): 1000 kg
• Lifting / lowering speed: ≥ 18 m/min
• Lifting height: up to 20 m
• Slewing angle: 360°
• Crane weight: 1450 kg
• Power supply: 380 V, 50 Hz, IP56
• Operating temperature: –10°C…+40°C
• Storage/transport conditions: –20°C…+45°C, wind loads up to 2000 Pa
Construction

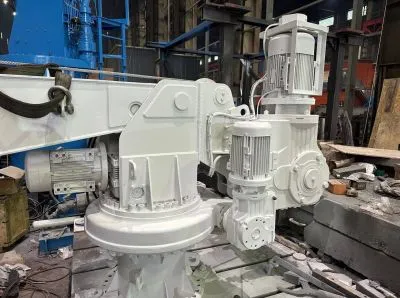

• Pedestal column with slewing gear (worm gearbox + electric motor)
• Folding L-shaped boom
• Electric winch with brake
• Hook block with swivel
• Electrical control cabinet
• Remote control pendant
Applications
• Small and medium vessel cargo handling
• Port and anchorage operations
• Vessel supply, equipment transfer, material handling
The crane is compact, reliable, and engineered to operate under marine vibration, splash exposure, wind loads and vessel motion.
Main Features
• Safe Working Load (SWL): 1000 kg
• Lifting / lowering speed: ≥ 18 m/min
• Lifting height: up to 20 m
• Slewing angle: 360°
• Crane weight: 1450 kg
• Power supply: 380 V, 50 Hz, IP56
• Operating temperature: –10°C…+40°C
• Storage/transport conditions: –20°C…+45°C, wind loads up to 2000 Pa
Construction
• Pedestal column with slewing gear (worm gearbox + electric motor)
• Folding L-shaped boom
• Electric winch with brake
• Hook block with swivel
• Electrical control cabinet
• Remote control pendant
Applications
• Small and medium vessel cargo handling
• Port and anchorage operations
• Vessel supply, equipment transfer, material handling
