Description

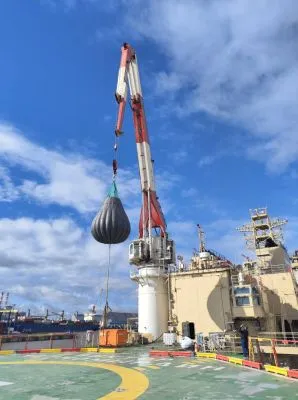

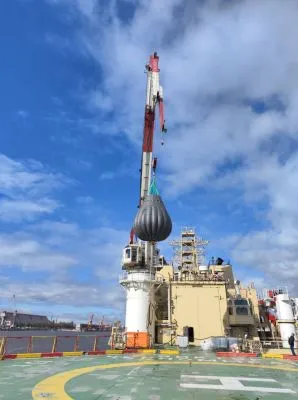

This Arctic-grade crane is designed for extreme cold-weather operation and offshore applications. It combines the functions of a cargo-handling crane, an offshore work crane, and an emergency-rescue lifting system.
Main Specifications

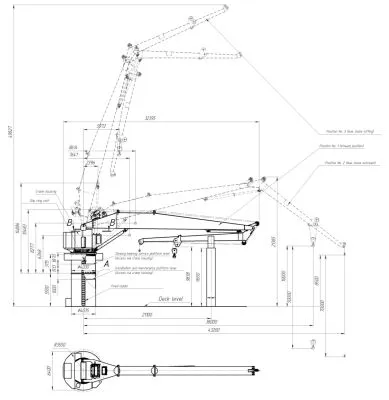

• Safe Working Load (main hook): 30 t at 38 m outreach
• Safe Working Load (aux hook): 5 t at 43 m outreach
• Maximum boom outreach: 43 m
• Minimum boom outreach: 6.5 m
• Lifting speed (cargo): 20 m/min (0.33 m/s)
• Lifting speed (personnel transport): 16 m/min (0.27 m/s)
• Slewing angle: 360° continuous
• Hook travel: 87 m
• Power: 325 kW main motors + 45 kW emergency pump
• Control: operator cabin (A/C, CCTV) + remote control pendant
Operating Conditions
• Working temperature: –40°C…+35°C, storage: up to –50°C
• Heel: up to 5°, trim: up to 2°
• Sea state: up to Beaufort 2
• Wind load: 400 Pa (working), 2000 Pa (stowed)
Design Features

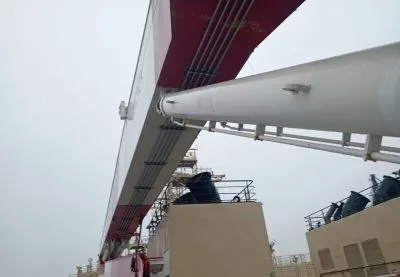

• Large-reach folding boom
• Automated load & tilt monitoring (strain gauges + inclinometers)
• Independent heated HPU inside insulated container
• Reinforced steel structures (cold-resistant steels 12-09G2S, 15-09G2S)
• Fully compliant with international offshore crane standards (Liebherr / MacGregor class)
• Capability for subsea loads and personnel rescue operations (FROG-6 basket)
Applications
• Icebreakers and Arctic-class ships
• Offshore drilling and research operations
• Pipe-laying and subsea engineering
• Heavy cargo handling
• Emergency personnel transfer and rescue operations
3D Animation:
https://www.youtube.com/watch?v=uyUDA0el4Oc
