Electric-Hydraulic Bridge Crane 3t

Electric-Hydraulic Bridge Crane, designed for torpedo-recovery boat.

Purpose:
• Lifting, lowering and traversing cylindrical loads (Ø 123–533 mm, L up to 8 m, mass up to 3 t).
• Rigid fixation of the suspended load to prevent swinging and rotation in sea state up to 3.
• Transfer and stowage of equipment in cradles inside the vessel’s hold.

Technical Data:
• SWL — 3 000 kg
• Lifting height — 1.3 m
• Hoisting speed — 0–2 m/min
• Trolley travel — 4.54 m
• Trolley speed — 0–3 m/min
• Bridge travel — 8.5 m
• Bridge speed — 0–6 m/min
• Crane mass — ≤ 3 400 kg
• Working pressure — ≤ 25 MPa
• Installed power — 13.26 kW
• Power supply — 3 × 380 V / 50 Hz
• Temperature range — −32 °C to +30 °C

Features:

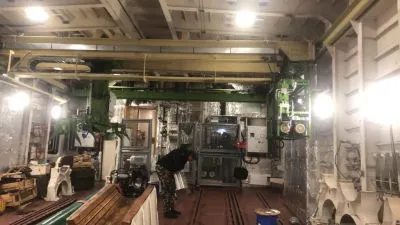

• Compact bridge crane integrated in a closed hold.

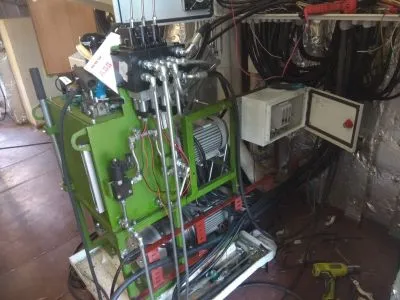

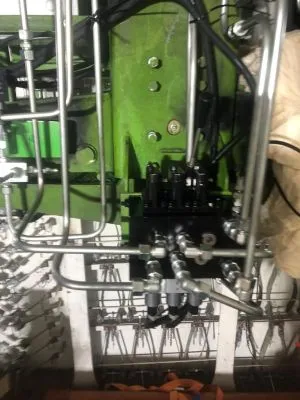

• Dual independent hydraulic stations and electric-hydraulic drive.
• Telescopic lifting system with anti-sway traverse arms.
• Manual and emergency hand-pump operation.
• Complies with Navy lifting-equipment standards.

3D Animation:
https://rutube.ru/video/a0adfea435ad81846dcac25f5fc97282/
